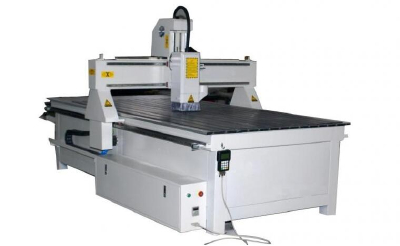

Yuehua 1325 wood engraving machine

Features:

1, imported linear guide round / square rails, double four ball slider, loading capacity, smooth operation, high precision, long life. Imported high precision ball screw, the knife precision.

2. Optional spindle NSK bearings imported from Japan for the use of high-speed water-cooled motor. Spindle power, performance and stability.

3, completely out of the computer can be remotely operated USB interface DSP operating system, handle operation, the operation easier, more user-friendly design, using unique Intelligent budget rules, full electrical potential to achieve high speed processing, linear synchronous curve is more perfect, not accounting for computer memory and enables the automatic start and stop cutting spindle.

4, software compatibility, compatible type3 / Actcam / Castmate / Wentai and other CAD / CAM design software.

5, six vacuum partition table, can be effective adsorption of different size plates.

6. High-speed drive stepper motor and drive, Y-axis dual-motor drive, so that high-speed operation up to 25 m / min or more blank line speed, with vigorously cutting engraving spindle speed can be more improved.

Applicable industries:

Woodworking: three-dimensional wave board processing, cabinet doors, wooden craft, paint doors, screens, milling-shaped furniture sculpture craft fan window processing products.

N or a long drag head according to the amount of work independently selectable.

Performance parameters:

X, Y axis travel 1300X2500mm

Z axis travel 200mm

Platform Size

1480X3000mm

Maximum traveling speed

> 25m / min

Clamping form

Vacuum suction by suction

processor

DSP / clocked at 100MHz

Interface Interface

USB

Carving instructions

G Generation * .u00 * .mmg * .plt

Software operating environment

DSP

Power (spindle)

1840W

Operating Voltage

220V 50Hz

Spindle power

3KW

Spindle speed

6000-24000rpm / min

Way of working

Stepping Steper

Configuring multiple models for customers to choose, welcome to inquire!

According to customer demand, custom size, select colors

Warranty time:

This machine can enjoy a free one-year warranty (excluding consumables), the machine during the warranty in case the machine quality problems, in the form of after-sale technical call by telephone to confirm whether the damage to the machine, you need to change with the accessories, the user can follow the instructions, the bad Accessories back, after we received immediately sent back to the new accessories, such as the user will not removable accessories, our technical staff will guide you home maintenance are satisfied.

Service:

Because we are factory direct, professional and technical personnel to do the sale, from the day of receipt of the machine, please take the initiative to ask the user factory technical sales calls, then the user all the relevant machine technical problems encountered in the use, sale and will teach how do you use to help you solve all technical issues related to the machine. In addition to technology, other problems encountered by users can find shops discuss solutions.

According to customer demand, custom size, select colors

Applications

Advertising industry: acrylic, color board, PVC, ABS board, aluminum, aluminum V-grooved cutting plate engraving, color portrait, three-dimensional billboards, all kinds of signs, badges, seat plate, copper, font, font, each class logo and trademark.

Woodworking: furniture, musical instruments manufacturer, wooden handicrafts, art form, artistic font characters, logos, flat plate engraving, wood furniture, art murals, MDF paint doors, composite doors, cabinets, windows and doors, bedside cabinets, wall relief sculpture cutting, processing ornament, gift wrap, wave board, countertop appliances, sporting goods, industrial products and other kinds of wooden three-dimensional surface and contour cutting.

Mold industry: carving a variety of mold, wood mold, matrix, wooden model aviation, propeller, building models, sand table model, model boats, automotive foam mold.

Materials: aluminum, MDF, solid wood boards, plywood, plywood, planed boards, cork, native wood, PVC, plaster, color plates, plastic plates, hibiscus board, plexiglass, acrylic, ABS, Vatican special stone , sandstone, marble, granite, a variety of artificial stone, light boxes, light guide, horn, metal, all kinds of hard plastic and so on.
