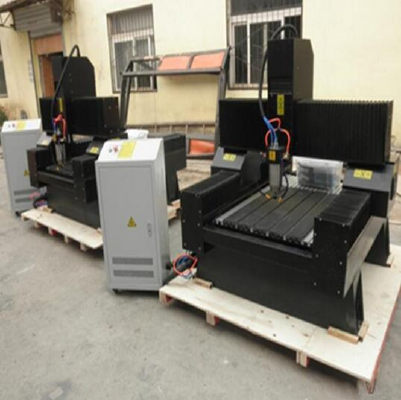

Yuehua -1325 heavy stone engraving machine
Taiwan imported linear square rails, double four slider, loading capacity, smooth operation, high precision, long life, precision knife.
◆ stone engraving machine machine seamless welded steel structure and by vibration aging treatment, to ensure that the machine does not shake at high speed operation, and constantly knives, processing highly smooth surface; it really rigid deformation, table back lining plate, high strength and rigidity well, machine loading capacity of up to two tons or more.
◆ High-power constant-torque spindle bearings, high speed, large chips, and the motor to be easily damaged.
◆ axis adopt dustproof, protection rail slider, imports of industrial grade ball screw and straight teeth, so that more precise placement of the tool.
◆ stone engraving machine with automatic oiling, limit.
◆ software compatibility, compatible Typ3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
◆ two-way tool cooling system, improve tool life.
◆ can be U disk embedded control system completely off-line or off-line DSP handle control system to make it work more convenient and flexible.
◆ optional U disk embedded DSP professional CNC machining systems, optional automatic tool equipment, simple operation, stable performance, powerful, there are power outages continued carving, processing time prediction, simulation sculpture and other powerful features, the use of more humane, powerful computing, which allows smoother machining.
◆ The optional rotary axis unit, expanding the type of material processing machine, increase the added value of processed products, rapid cost recovery.
◆ low cost, powerful, widely used.
Fourth, the main function:
Stone engraving, stone reliefs, stone carved male, female stone carving, line carving stone, stone hollow.
V. Application:
All kinds of marble, granite, tile, European-style stone decoration, tombstone, monument, landmark, murals, railings, stone reliefs, etc., all in addition to stone cutting and carving outside the relief process.
Sixth, the configuration parameters:
model
YH-1325 stone engraving machine
X stroke
1300mm
Y travel
2500mm
Feeding height
30CM
Precision
0.05mm
Repeatability
0.02mm
The largest empty line speed
6m
Maximum engraving speed
5m
Operating Voltage
220/50 / 60HZ (optional 380/50 / 60HZ)
Carving instructions
Standard G code, u00, mmg, plt
Control System
Weihong / DSP handle
Body size (LWH)
Weight
Mechanical components
Organism
Steel welding / T-type structure
Gantry, column
Steel
Orbit
Side rails
transfer method
XY rack drive Z screw drive (XY Z25 straight rack guide 10)
Electrical accessories
Spindle motor
Future 3.2kw frequency conversion water-cooled spindle (optional 4.5KW, 5.5KW)
Inverter
Bei Shide
Stepper motor 450B
driver
Raiser 860H
Limit
XYZ photoelectric
Supporting software
ARTCAM Wentai carved
Software operating environment
windows98 / 2000 / xp
Configuring multiple models for customers to choose, welcome to inquire!
According to customer demand, custom size, select colors
Warranty time:
This machine can enjoy a free one-year warranty (excluding consumables), the machine during the warranty in case the machine quality problems, in the form of after-sale technical call by telephone to confirm whether the damage to the machine, you need to change with the accessories, the user can follow the instructions, the bad Accessories back, after we received immediately sent back to the new accessories, such as the user will not removable accessories, our technical staff will guide you home maintenance are satisfied.
Service:
Because we are factory direct, professional and technical personnel to do the sale, from the day of receipt of the machine, please take the initiative to ask the user factory technical sales calls, then the user all the relevant machine technical problems encountered in the use, sale and will teach how do you use to help you solve all technical issues related to the machine. In addition to technology, other problems encountered by users can find shops discuss solutions.
According to customer demand, custom size, select colors
Applications
Advertising industry: acrylic, color board, PVC, ABS board, aluminum, aluminum V-grooved cutting plate engraving, color portrait, three-dimensional billboards, all kinds of signs, badges, seat plate, copper, font, font, each class logo and trademark.
Woodworking: furniture, musical instruments manufacturer, wooden handicrafts, art form, artistic font characters, logos, flat plate engraving, wood furniture, art murals, MDF paint doors, composite doors, cabinets, windows and doors, bedside cabinets, wall relief sculpture cutting, processing ornament, gift wrap, wave board, countertop appliances, sporting goods, industrial products and other kinds of wooden three-dimensional surface and contour cutting.
Mold industry: carving a variety of mold, wood mold, matrix, wooden model aviation, propeller, building models, sand table model, model boats, automotive foam mold.
Materials: aluminum, MDF, solid wood boards, plywood, plywood, planed boards, cork, native wood, PVC, plaster, color plates, plastic plates, hibiscus board, plexiglass, acrylic, ABS, Vatican special stone , sandstone, marble, granite, a variety of artificial stone, light boxes, light guide, horn, metal, all kinds of hard plastic and so on.
